SP QC series is designed with a user-friendly automatic balancing clamp-type operating mechanism that is different from the traditional complex rotary mechanism. This series is particularly suitable for applications that require frequent replacements of filter cartridge or fast switching of filters for uninterrupted production. Compared with traditional eye bolts, the clamp and turning wheel of this series can be manually operated at fixed points, while opening/closing takes a very short time, having greatly promoted the work efficiency. In addition, the automatic balancing mechanism may function to realize vertical opening/closing of the top cover, so that the operation space required is reduced; meanwhile, the cover can remain still at any angle, and the internal structural is so designed as to prevent any personal injury of the operator.

Advantages

1. User-friendly design, automatic balancing and clamp locking, easy operation, high safety and reliability

2. Precisely designed gravity balancing mechanism for easy and labor-saving opening

3. More convenient opening and faster replacement of filter element in comparison to bolt-locking structure

4. Safety interlocking mechanism that allows opening of the filter only after pressure relief

5. Optimized design realizes no side leakage or overflow

6. Multiple in-and-out modes available for selection

Applications

Automobiles, Copper foils, Electronic industry,  Refined chemical industry, Petrochemical Engineering, Paper-making, Foods and Beverage,  Pharmaceuticals,  Paints, Various fluids containing traces of impurities

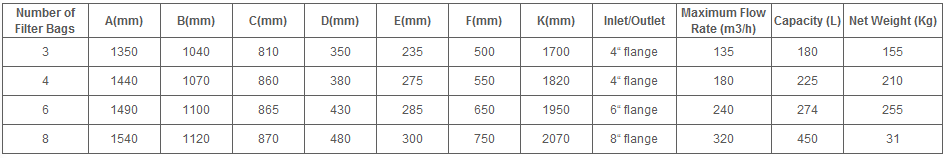

Data Sheet

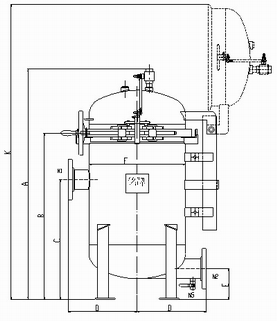

Details

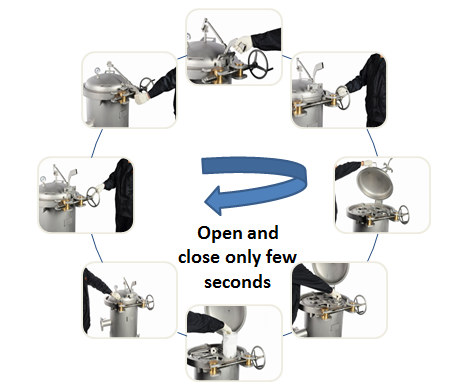

Operation steps

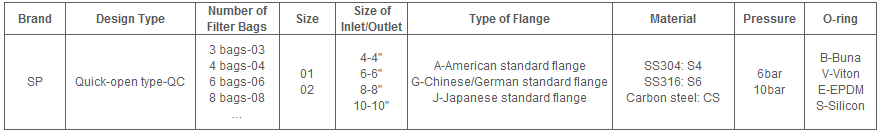

Order Code

For example: SP QC 0302 4 A S4 10B
