The housing can be provided with one or more than one (up to 300) microporous filter cartridges. Both the housing and filter cartridges are standardized products of SP. Different flow rates can be realizedbased on different materials, bore diameters, lengths and numbers of cartridges. Fluid to be filtered will enter the filter via the inlet, goes through the filter cartridge (s) from outside to the inside to the filter layer where it is filtered to become clear liquid, and then goes out from the outlet. Impurities are retained at the depth and surface of the filter element(s), so that filtration of the fluid is realized.

Advantages

Filter can be equipped with one or several (up to 300 pcs) micro porous cartridges. These are all standardized products in SPE. Customer can reach different flow according to different material, pore diameter, length and quantity of cartridge.

Applications

Petroleum, Chemical, Mechanical, Metallurgy, Texture, Printing and Dyeing, Electroplating, Pharmaceutical and Food Industries.

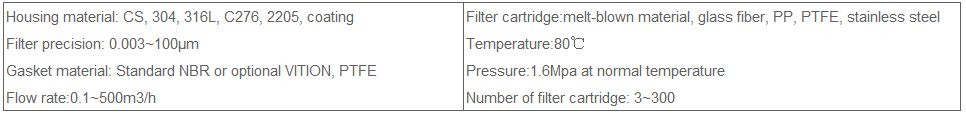

Data Sheet

The safe operating temperature and pressure depends on the filter cartridge and O-ring. If the operating pressure or temperature exceeds the values provided above, please make special indication.

Acceptance standards for design and manufacturing: standard for steel pressure vessels and water treatment filters, ASME ”U”

Surface treatment: mechanical polishing, electrolytic polishing, shot blasting, painting

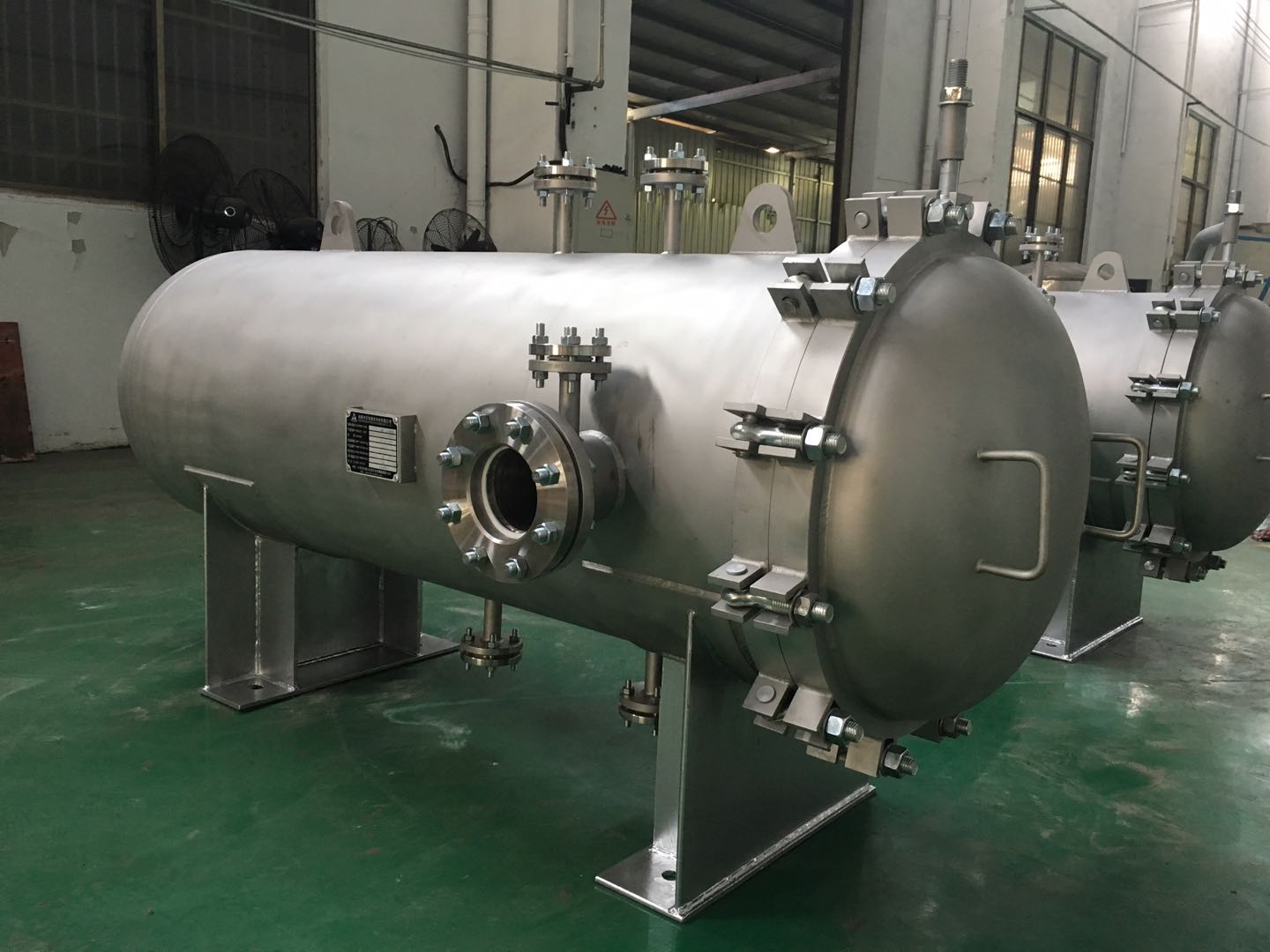

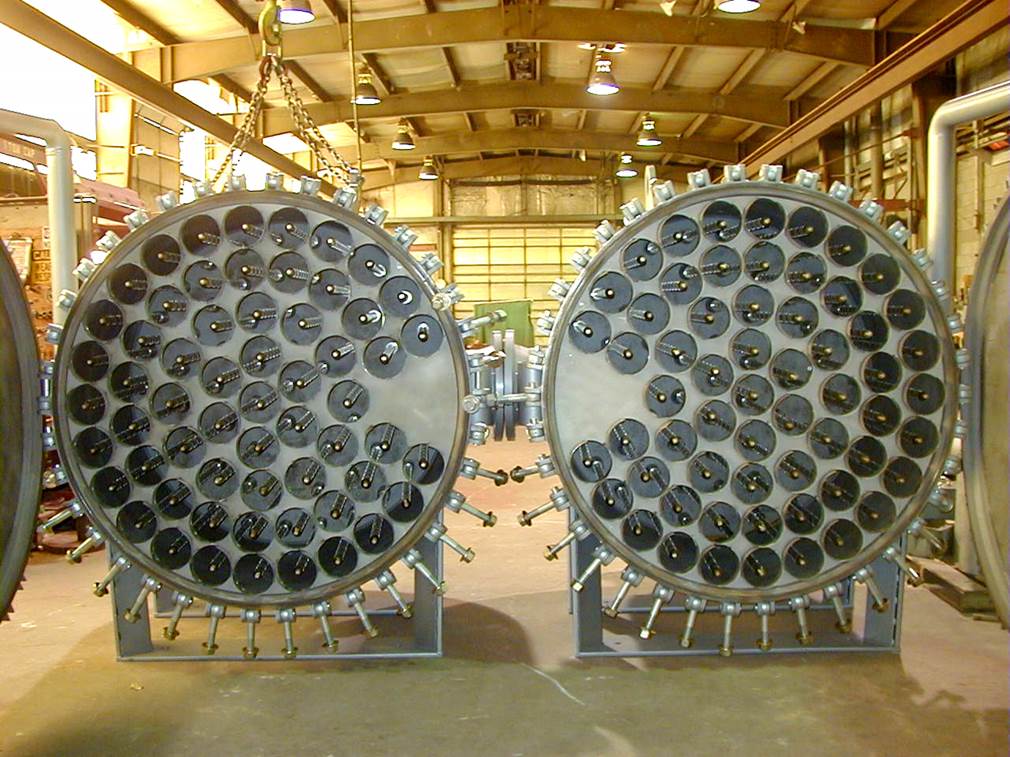

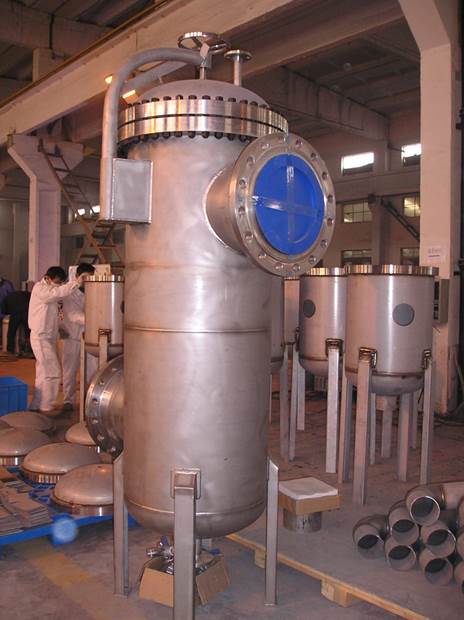

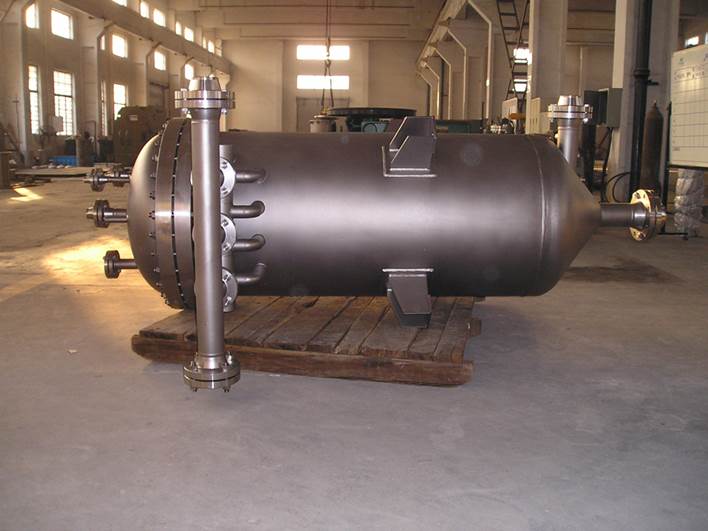

Photos

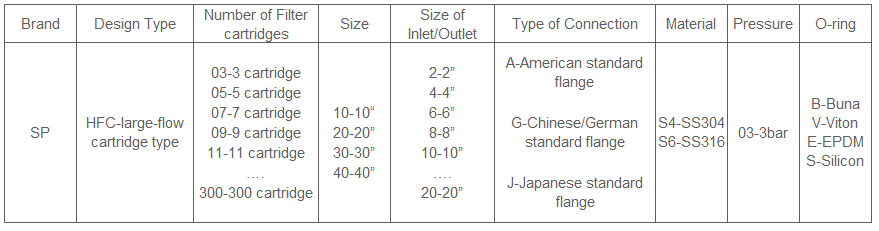

Order Code

For example: SP DC 03102AS403B
