The SP-IC filter can be provided with one or more than one micro porous filter cartridge. Different flow rates can be realized based on different materials bore diameters, lengths and numbers of cartridges.

Advantages

We provide filters of different flow according to customer's requirements for different material, pore diameter, length and quantity of cartridge. Filter applies reasonable fluid mechanics technique, design, manufacturing, inspection and acceptance in accordance with GB150-1998.

Applications

Solid- liquid separation of Petroleum, Chemical, Machinery, Metallurgy, Textile, Printing and Dyeing, Electroplating, Medicine, Food and other industries.

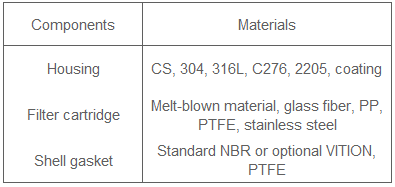

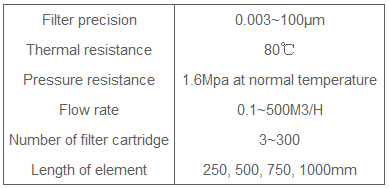

Data Sheet

Others

The safe operating temperature and pressure depends on the filter element and O-ring. If the operating pressure or temperature exceeds the values provided above, please make special indication.

Acceptance standards for design and manufacturing: standard for steel pressure vessels and water treatment filters, ASME ”U”

Surface treatment: mechanical polishing, electrolytic polishing, shot blasting, painting.

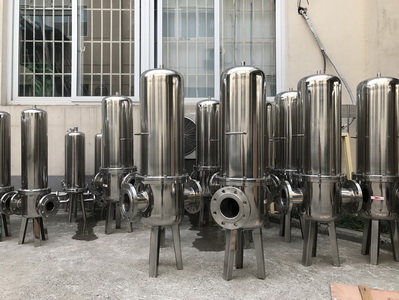

Photos

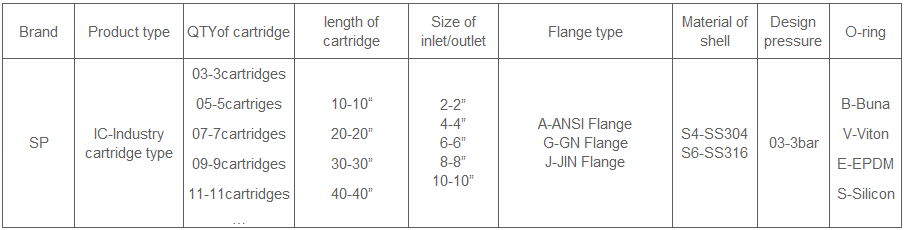

Order Code

For example: SP IC 03102AS403B
