The ASC series pneumatic scraper-type self-cleaning filter is a new effective scraper-type self-cleaning filter independently researched and developed by SP. It can automatically remove particle impurities on the internal surfaces of the filter cartridge through mechanical scraping, in realization of online continuous filtration. The ASC filter is mainly designed for high-viscosity applications. It is suitable for fluids with the viscosity of up to 800,000MPa.s, and has the filter precision of 50-1500μm.

Advantages

Imported wedge-shaped screens are used, which may last for above 10 years, and thus costs are saved.

An electronic control system is provided and can be connected to the central control system, in realization of simple operation

Anti-explosion cylinder driving is adopted

Constant cleaning of filter cartridge ensures high efficiency and low waste of materials

Sound, safe and healthy operation environment

Applications

Industries: petrochemical engineering, refined chemical engineering, pharmaceutical chemical engineering, paper-making, food and beverage industry, water treatment and etc.

Liquid: wax, kerosene, monomer, polymer, citric acid, fermentation liquid, chitosan, cosmetics, agarose (gel), silicon resin solution, soap, sorbitol, steroid, syrup, wet strengthening agents, adhesives, pigments, lubricants, coatings, resin, latex, ethanol, mixed oils, edible oils, high-temperature oils, juices, diesel and etc.

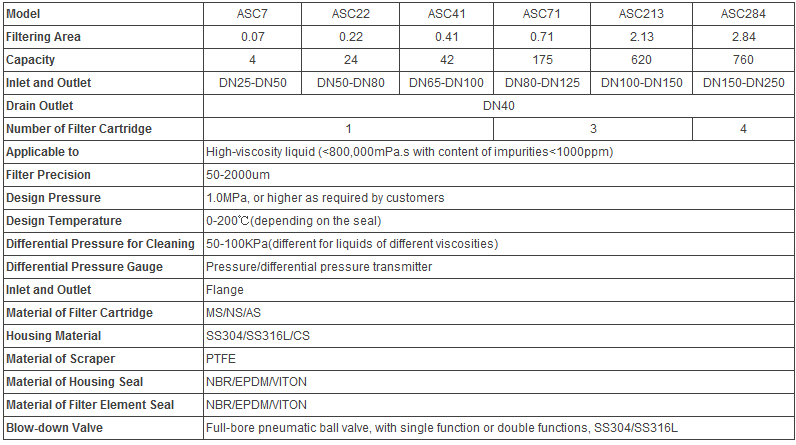

Data Sheet

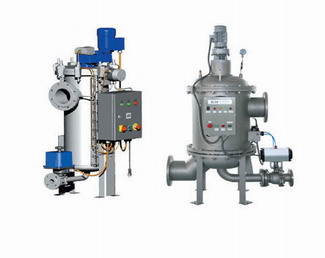

Photos
