The ASF fully automatic scraper-type filter is a new generation of mechanical self-cleaning filter independently researched and developed by SP. Different from the ASF back-flushing self-cleaning filter, the ASF fully automatic scraper-type filter is suitable for self-cleaning filtration of more solvents, acid and alkali solutions, polymers, pigments and other viscous materials. The filter precision is 30-30000μm. The filter can be used for filtration of fluids with the viscosity of up to 800,000 cp.

Advantages

Internationally top-class wedge-shaped screen cartridge for 24-hour continuous online filtration, requiring no laborious replacement and cleaning of the cartridge

Requires no special attendant for throughout monitoring.

Electronic control system that can be connected to the central control system.

V-SLOT filter element that features precise slots, extremely smooth surface, high strength and long service life.

It can be used for filtration of fluids with the viscosity of up to 800,000 cp.

Applications

Petrochemical engineering, Refined chemical engineering, Pharmaceutical chemical engineering, Grease, Paper-making, Resin and etc.

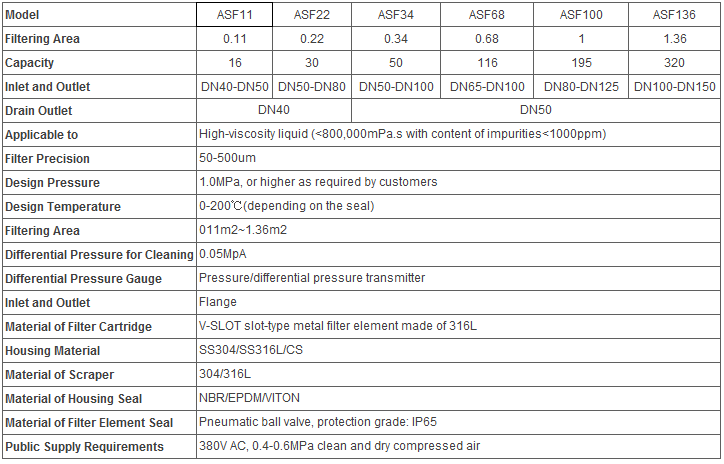

Data Sheet

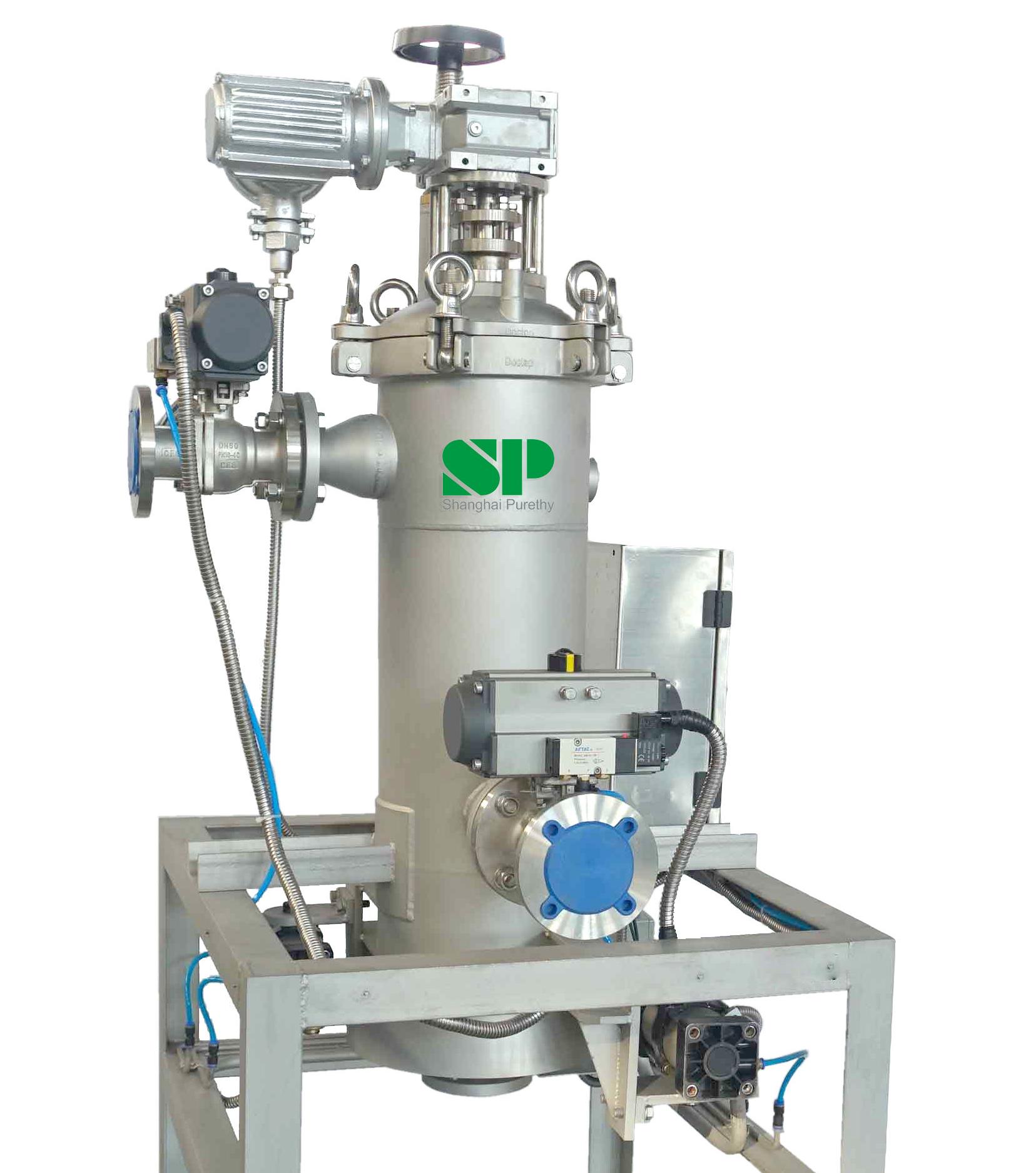

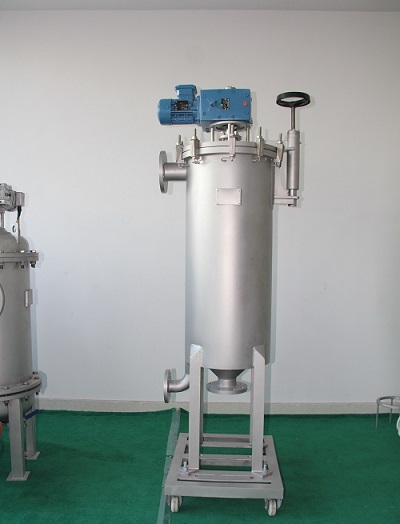

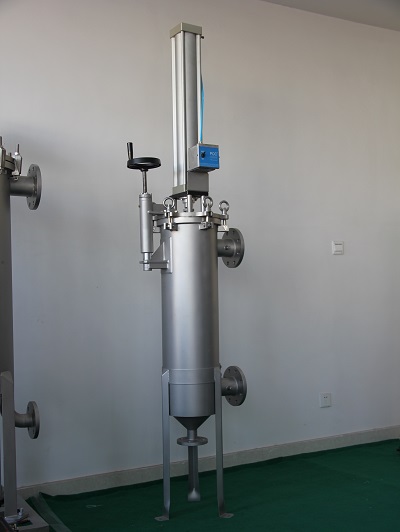

Photos
