The high flow rate cartridges have 6 inch/152mm large diameter, and is coreless, single open-ended with an inside to outside flow direction. The large diameter with big filter area can reduce the number of filter cartridges and the dimension of housing required. The long service life and high flow rate can bring low investment and less manpower in many applications.

Advantages

Gradient pore structure

Up to 110M3/H flow rate per filter cartridge for water filtration

Maximum 50% reduction of filter system

All contaminants can be removed within the cartridge because of the flow direction.

Applications

Prefiltration of RO, Pretreatment of sea water desalination

Condensate water filtration, hot water recovery in power generation

Solvents, and water filtration in Bio-pharm market

The filtration of bottled water, high Fructose, edible oil, soft drinks, and milk

Paints and coatings, Petrochemical, Refineries

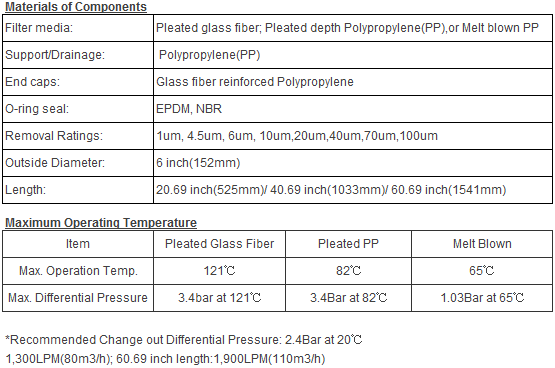

Data Sheet

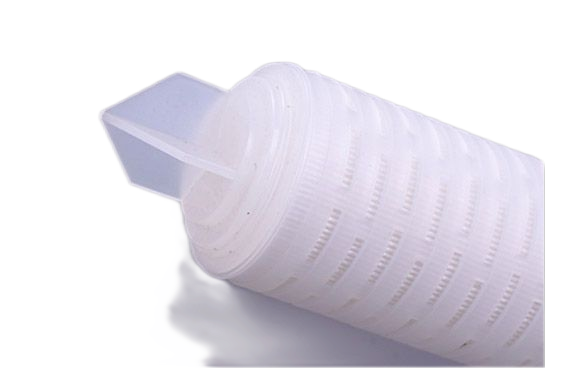

Photos

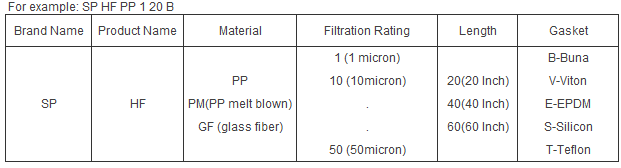

Order Code
